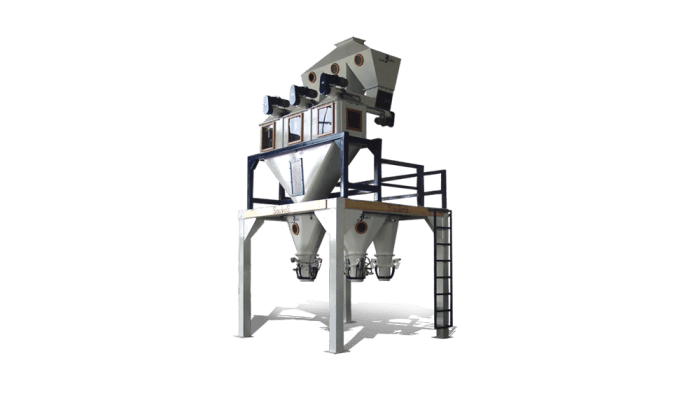

AUTOMATIC WEIGHING-PACKAGING CAROUSEL FOR VALVE BAGS TYPE “B5” AND OPEN MOUTH BAGS TYPE “M5”

They are specially designed for the smooth and automated weighing and packaging of various products in open mouth and valve bags respectively. They are automatic and high technology machines, essential and absolutely suitable for the industries of packaging flour, animal foods, pharmaceutical and cereal products, fertilizers, cement etc. with large productivity capacity.
Each machine consists of three weighing bins, which are controlled by three separate electronic weighing progress, the material is lead for packaging to at least five filling spouts for open mouth and valve bags respectively. The structure and the flexible design of each machine, allows the weighing and packaging of big amounts of any material easily and quickly.

Technical characteristics

Output: 1000-1200 bags

Weighing range in open mouth and valve bags: 10-50 kg

Power consumption: 27hp

Weighing accuracy: ±50g

Operating voltage: 380V

Electro pneumatic operation: 6atm

Bag type: all kind of open mouth bags
